Quick Mixers

Ensure Reliable, Repeatable Mixing; Reduce Cycle Times

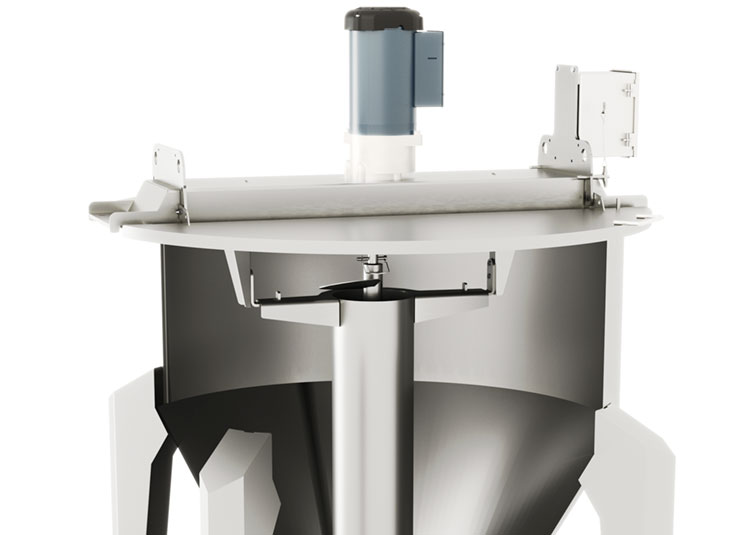

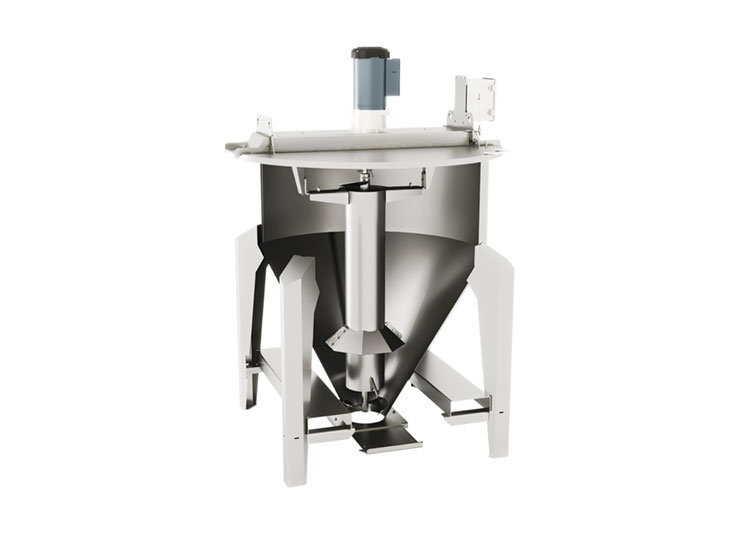

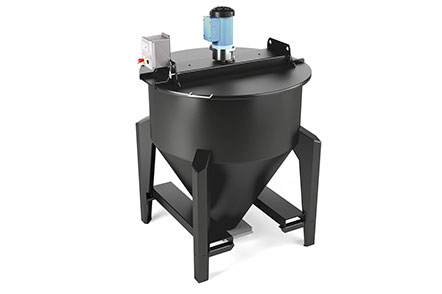

Designed for capacities between 5 and 98 cu. ft., NBE Quick Mixers can economically mix pellets, regrinds, and granular materials. Standard features include a vertical mixing auger with both a bottom scoop and dispersion plate to ensure homogenous blends, every time. On all capacities, the vertical tube and auger are removable for easy cleaning between ingredient or additive batches.

PDF Download

Features and Integration:

Standard Build Details

Optional Features

NBE mixers are engineered to be configurable for specific application requirements. With a broad selection of design features and accessory components, our mixers can meet even the most demanding process and compliance requirements.

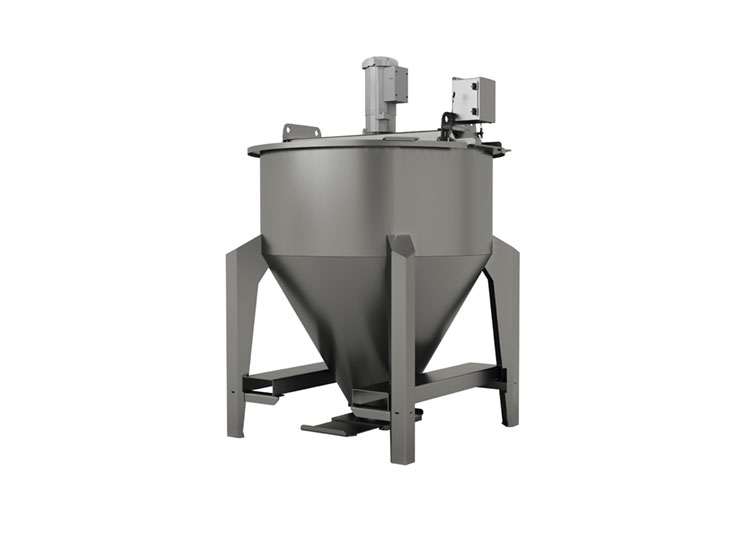

  • Gaylord Discharge Stands: A gaylord stand provides a stable platform onto which a mixer can be lifted, via integrated fork pockets, to enable discharge into a bulk container below. This method eliminates the need to utilize stationary forklifts or other methods for increasing the height of the mixer during discharge operations.
  • Personnel Platforms: For mixers with optional gaylord discharge stands, a personnel platform allows operators to access the elevated mixing vessel and provides a stable working space from which to control operations and conduct cleaning or inspections.
  • Material Platforms: For mixers with optional gaylord discharge stands and personnel platforms, a material platform can be added to stage bulk containers near the mixer itself, eliminating multiple trips to the floor or other area for infeed when the mixer is elevated.
  • Bag Opening Grate: An optional bag opening grate can be specified to aid manual material infeed.

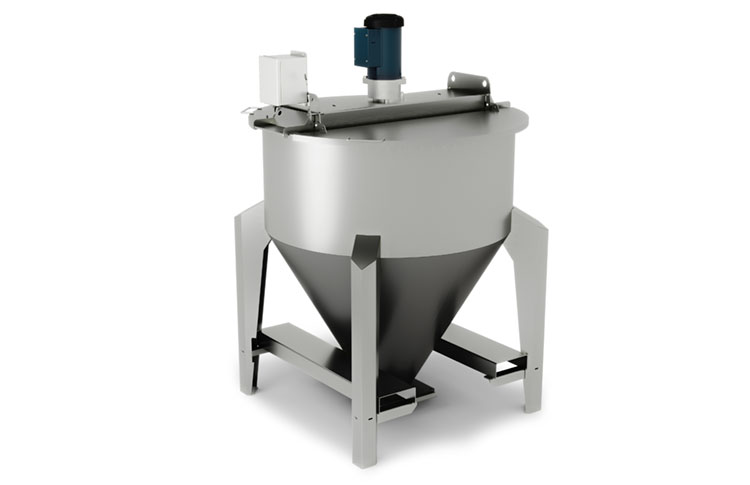

  • 304/316 Stainless Steel Construction: In addition to carbon steel, 304 and 316 stainless steel construction is also available for Quick Mix units. Product contact seams are continuous-welded and ground smooth.
  • Vacuum Receiver: For facilities with centralized or local vacuum systems, standard and custom receiver mounting patterns are available for mixer covers.
  • Epoxy Painted Interiors: Interior mixer surfaces can be coated with wither clear or grey epoxy coatings for more complete protection of the unpainted surfaces. These coatings eliminate surface oxidation and improve material flowability.
  • Flex Screw Discharge Stand: Mixers that discharge into a flexible screw conveyor may require a discharge stand to raise the height of the mixer in order to affix an inlet boot. NBE discharge stands are constructed of heavy gauge steel, and feature integrated footpads for proper mixer positioning.
  • Vacuum Box Discharge Stand: Mixers that discharge into a vacuum takeaway system may require a discharge stand to raise the height of the mixer to accommodate a vacuum box. NBE discharge stands are constructed of heavy gauge steel, and feature integrated footpads for proper mixer positioning.
  • Vacuum Line Distribution Box and Probes: For process operations with local or centralized vacuum takeaway systems, NBE Quick mixers can be optionally equipped with an integrated distribution box and probes.
